Barnstyle Canopy Kits
Our barn-style roof canopy kits provide a cost-effective way to get shelter fast! These robust structures are constructed from heavy duty fittings and 12-15 mil poly tarps for superior strength and protection in windy conditions. Plus, our units come with the option of adding legs for extra height if needed - all at an economical price point. Bungees included so you can assemble it quickly!
We supply: Connector Fittings, 6 oz. poly tarp & Ball Bungees
You supply: 1 3/8" Chain Link Toprail Tubing - 18 gauge

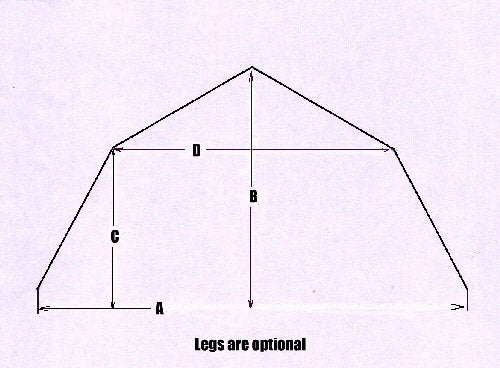

*See the photo with the diagram for more explanation on the inner dimensions.
*Footprints that are 13'6" wide have the following dimensions: A-13'6" B-7'6", C-5', D-8'6"
*Footprints that are 17' wide have the following dimensions: A-17', B-10', C-6', D-14'
|
Footprint
|
Tubing Required
|
|
13'6" x 10'
|
8 pieces 56" & 9 pieces 118"
|
|
13'6" x 12'
|
12 pieces 56" & 10 pieces 69"
|
|
13'6" x 20'
|
12 pieces 56" & 10 pieces 118" |
| 13'6" x 30' |
16 pieces 56" & 15 pieces 118" |
| 13'6" x 40' |
20 pieces 56" & 20 pieces 118"
|
|
17' x 12'
|
12 pieces 68" & 10 pieces 69"
|
|
17' x 20'
|
12 pieces 68" & 10 pieces 118"
|
|
17' x 30'
|
16 pieces 68" & 15 pieces 118"
|
|
17' x 40'
|
20 pieces 68" & 20 pieces 118"
|
